1602 Character LCD Module (16×2)

A widely used 16×2 character LCD module for control panels, instruments, medical equipment and connected devices.

Product Overview

Module configuration: 16 characters × 2 lines
Construction: Chip-on-board (COB) LCD module
Applications: Industrial controls, medical equipment, instrumentation and embedded devices
Customization: Display mode, backlight, interface, connector, pinout and mechanical outline

Product Images and Drawings

1602 Character LCD Module (16×2) – 10.jpg

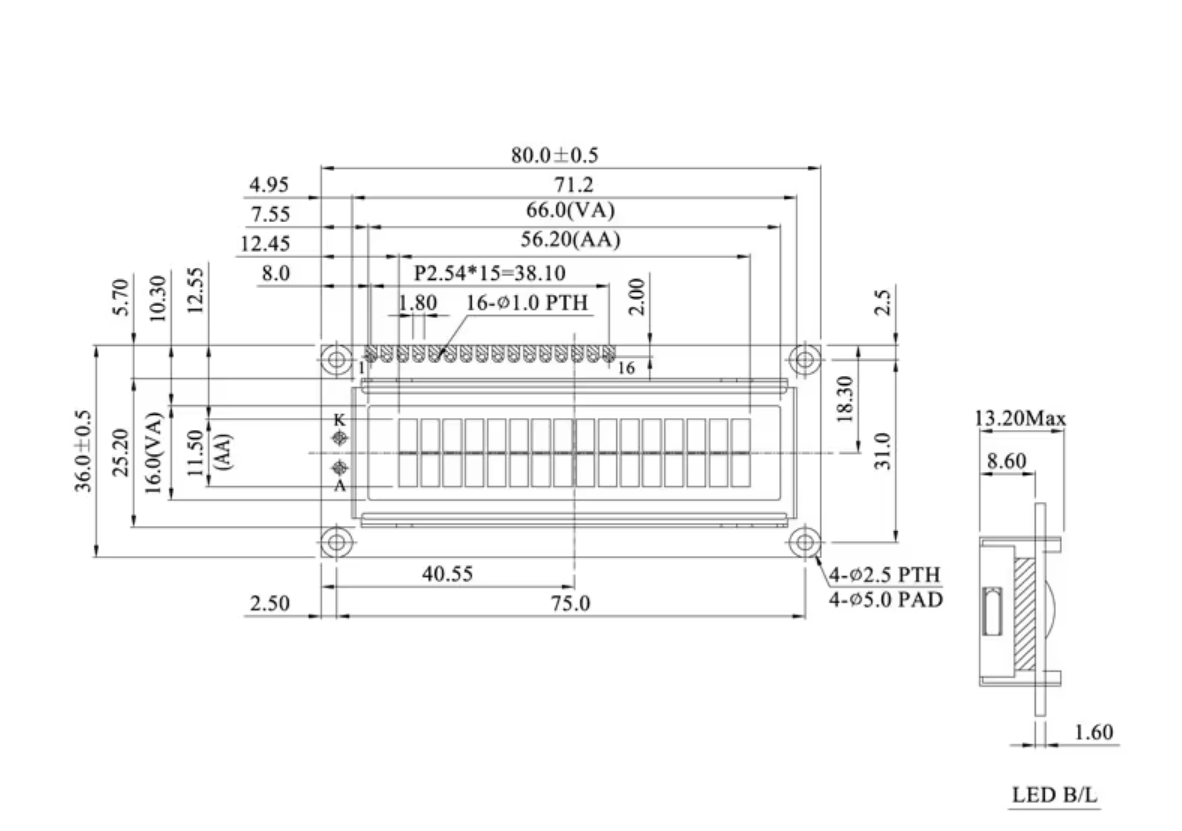

1602 Character LCD Module (16×2) – 1.png

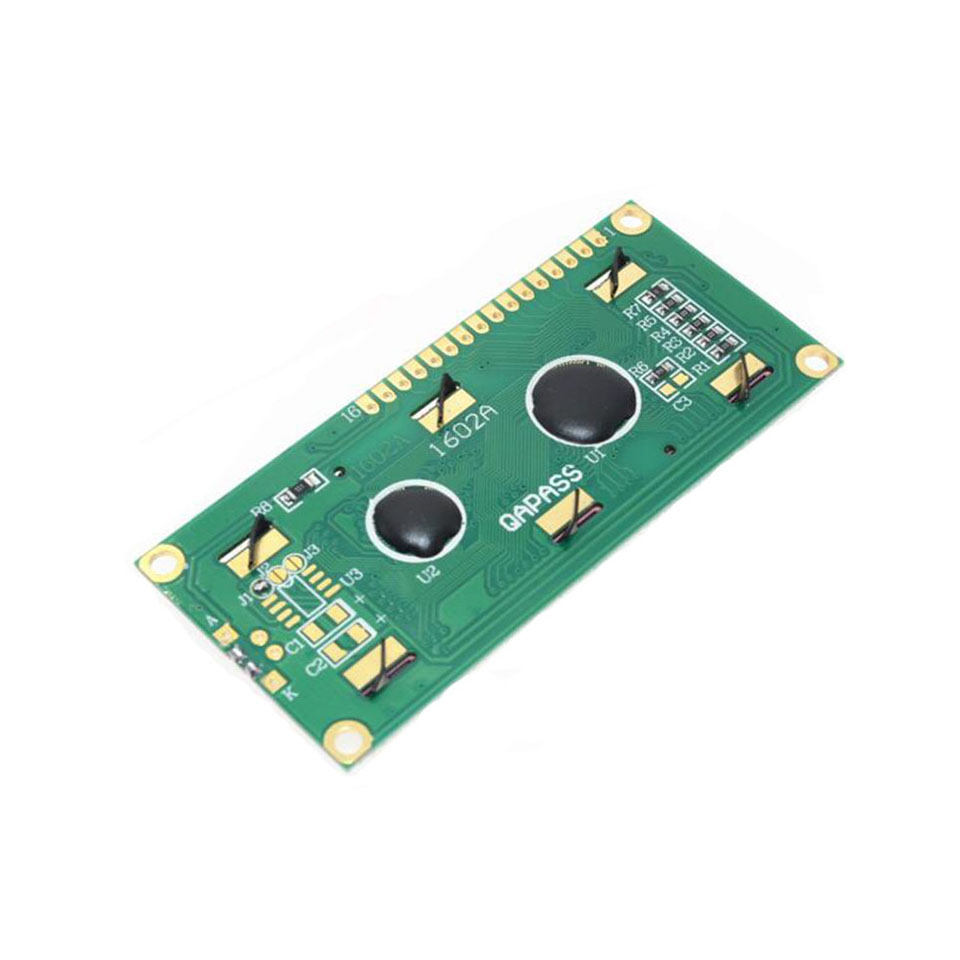

1602 Character LCD Module (16×2) – 3.jpg

1602 Character LCD Module (16×2) – 3.png

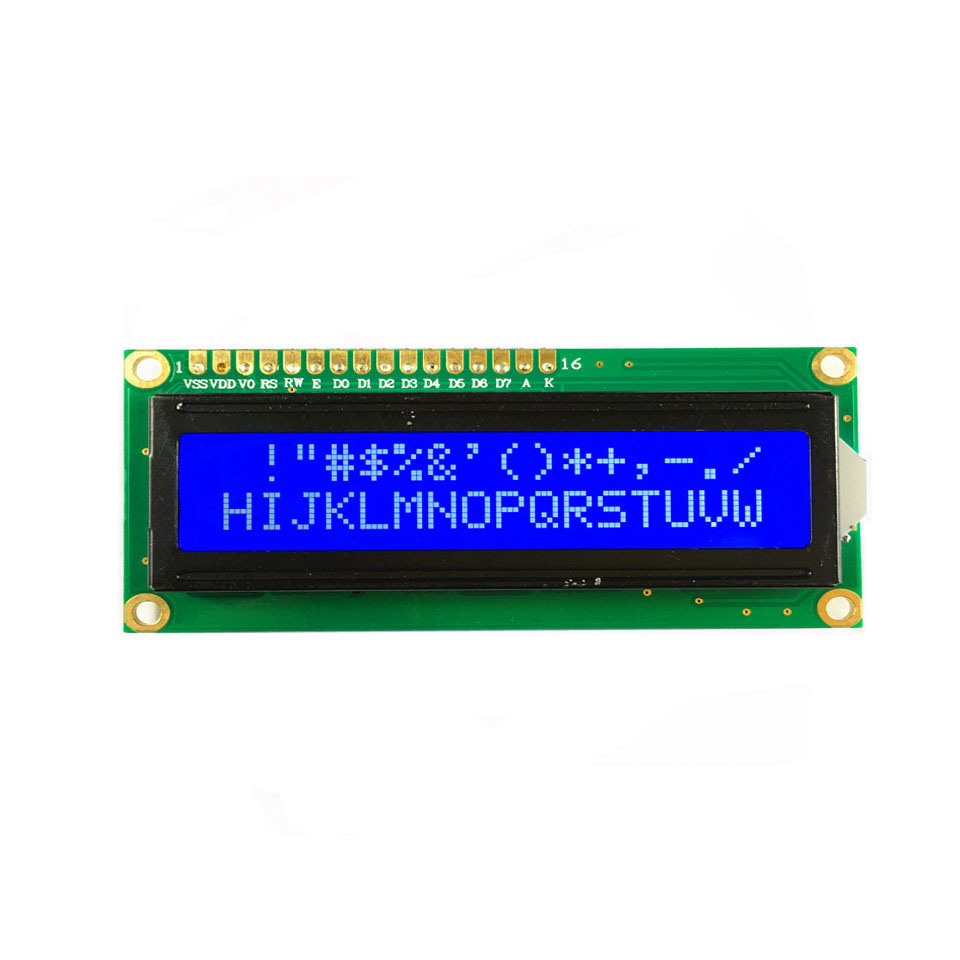

1602 Character LCD Module (16×2) – 6.jpg

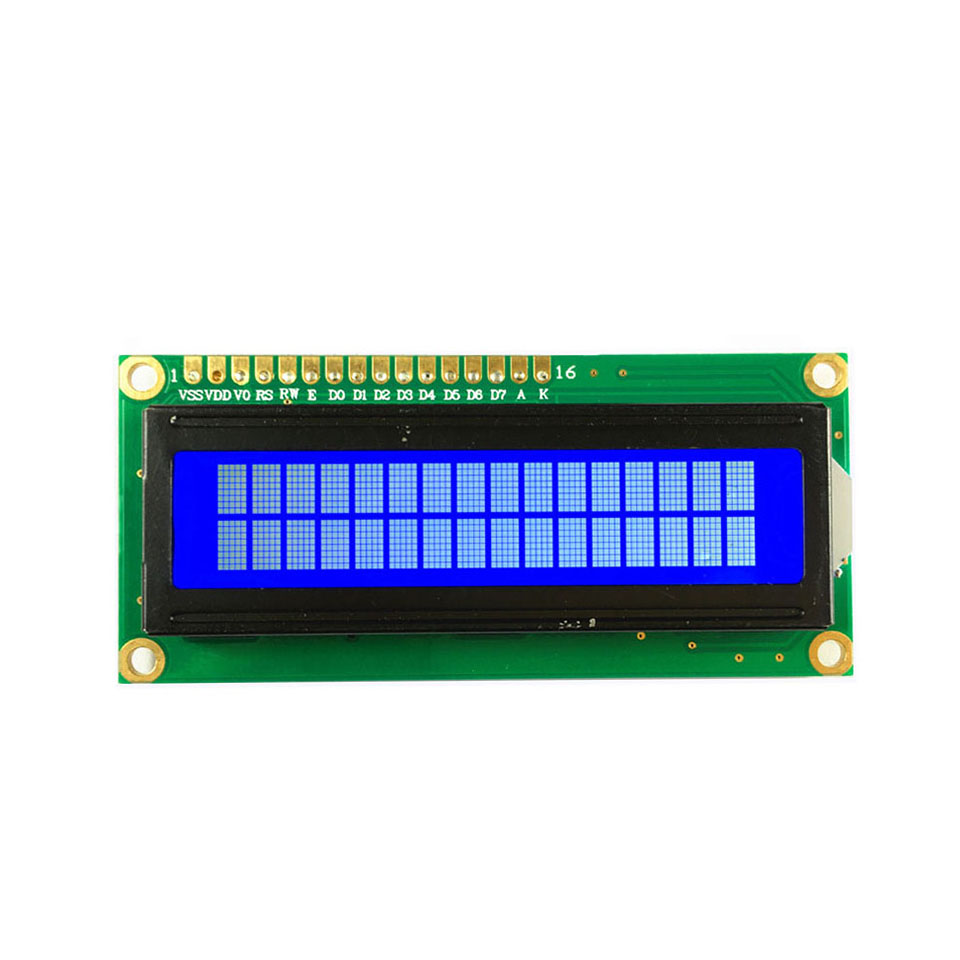

1602 Character LCD Module (16×2) – 7.jpg

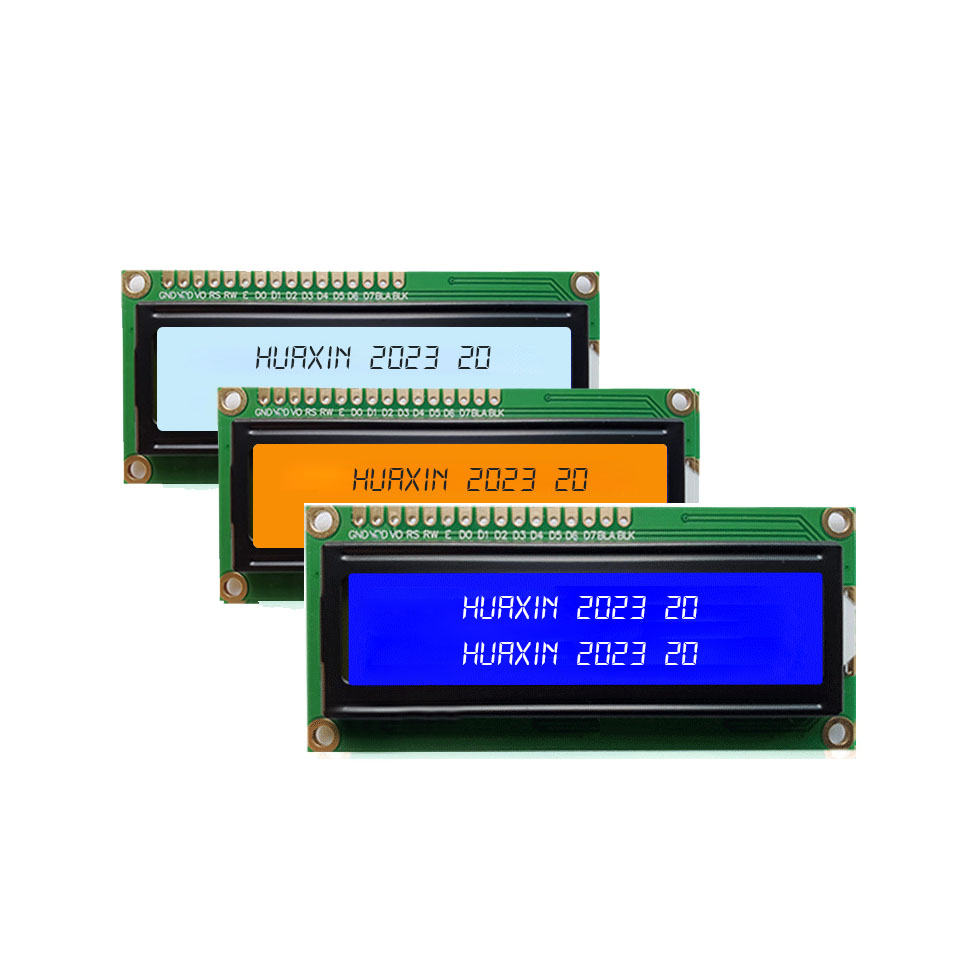

1602 Character LCD Module (16×2) – 8.jpg

Customization Support

HONGJiNG Display can adapt the module around your viewing area, mechanical envelope, interface, pinout, connector, backlight color and operating environment. Contact us with your drawing or target specification for a feasibility review.
